U-LINE — Glare-Free Indirect Light, UGR<19

U-LINE Indirect Linear Lighting System

Name: U-LINE Indirect Linear Lighting System
Brand: FusionBrite
Availability: InStock
Rating: 4.9 (85 reviews)

Soft, glare-free illumination for schools and offices. 10% uplight / 90% reflected light — only see light, not the source. UGR<19, 135–150 lm/W, DALI dimmable. Perfect for replacing fluorescent indirect lighting.

135–150 lm/W UGR <19 DALI / 1-10V 5-Year Warranty

Get Quote View Specifications

U-LINE indirect linear lighting - glare-free for school and office

135–150 lm/W · Indirect Light · UGR<19

Compatible with: GlobalIvelaEutracUniproStucchiPowergearStaff | 3/4-circuit | DALI / 1-10V | Emergency backup

Why U-LINE for Glare-Free Classrooms & Offices?

UGR < 19

Glare-free comfort for classrooms, lecture halls, and open offices. Meets EN12464-1.

135–150 lm/W

Up to 16,000 lm output, reduces energy cost by 60% vs fluorescent. Replace fluorescent indirect lighting with ease.

Indirect Light Design

10% up to ceiling, 90% reflected down — soft, even illumination for task ambient lighting.

DALI / 1-10V

Mounting height: 3-5m

Uplight: 10%Downlight: 90%

Soft ambient + ceiling illumination

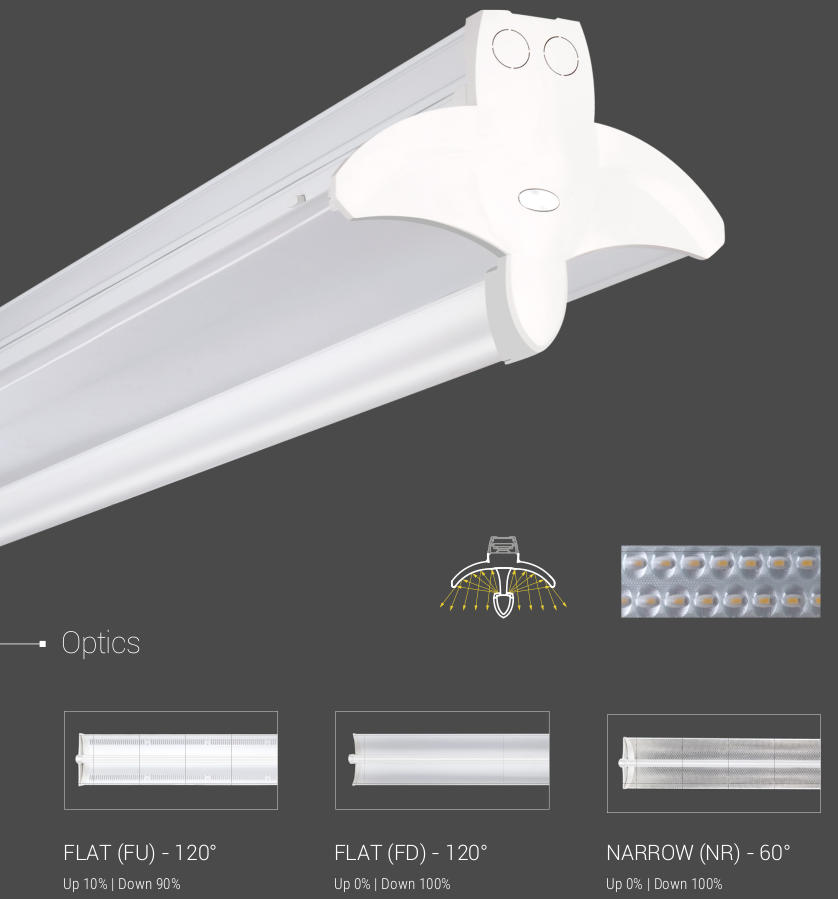

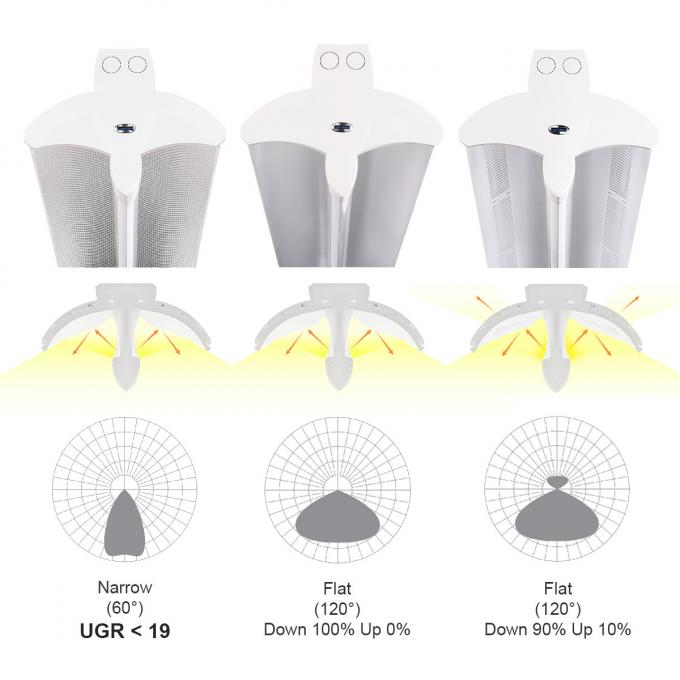

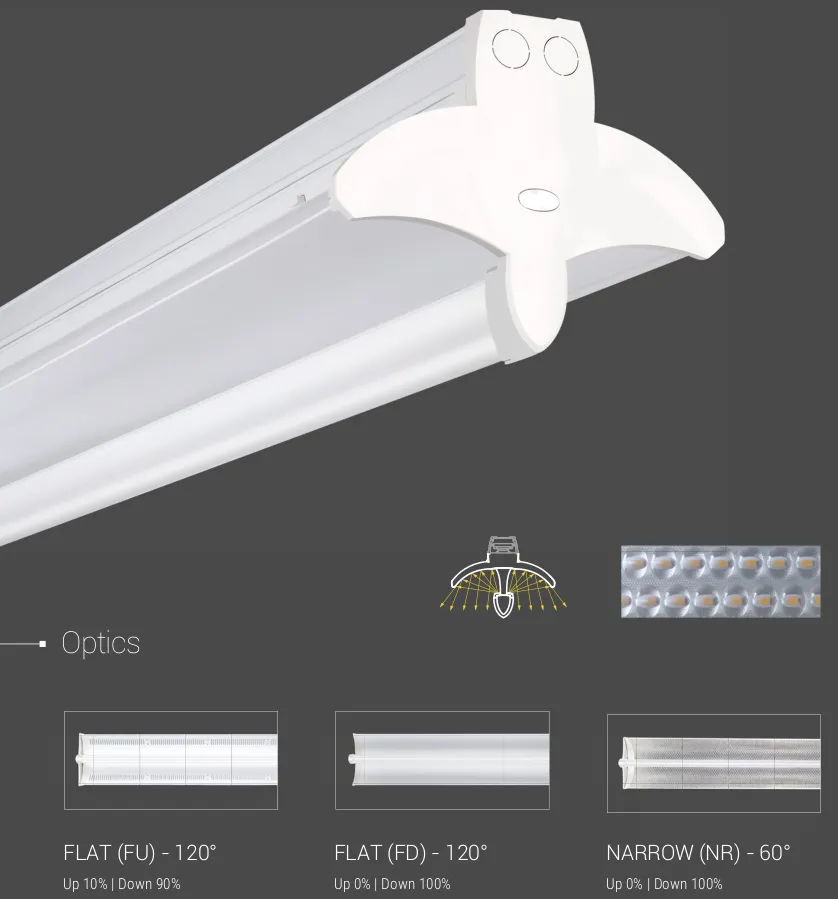

💡 Indirect Lighting Options (from U-LINE series)

FLAT (FU) - 120° — Up 10% / Down 90%
Soft ambient with ceiling illumination

FLAT (FD) - 120° — Up 0% / Down 100%
Full direct wide distribution

NARROW (NR) - 60° — Up 0% / Down 100%
Focused direct light for task areas

Designed for Visual Comfort in Learning & Working Environments

UGR < 19 — Essential for schools, universities, and corporate offices. Reduces eye strain, improves concentration, and meets EN12464-1 standards. Perfect for low UGR linear light for offices and glare-free classroom lighting.

✓ Classrooms & Lecture Halls: Even, glare-free light on whiteboards and desks
✓ Open Plan Offices: Indirect illumination reduces screen reflections
✓ Libraries & Study Areas: Comfortable long-duration lighting
✓ Retail & Showrooms: 90+ CRI brings product colors to life
✓ Replace Fluorescent Indirect Lighting: Direct retrofit on existing trunking systems

🔗 Need direct track linear lighting? Check out our T-LINE Track Linear Light for supermarket and warehouse applications.

Indirect Light vs Direct Light

Feature	Direct Light	Indirect (U-LINE)
Glare	High potential	Very low (UGR<19)
Shadow	Hard shadows	Soft, diffused
Eye comfort	Fatigue possible	Excellent for long hours
Ceiling illumination	None	10% uplight brightens room

Technical Specifications

Input Voltage	220-240VAC / 100-277VAC
Power Options	35W / 50W / 65W / 70W / 100W / 150W (per length)
Lumen Output	4,000 – 16,000 lm
Efficacy	135 – 150 lm/W
CCT	3000K / 4000K / 5000K / 6000K
CRI (Ra)	>80Ra or >95Ra (R9>0)
UGR	< 19 (with appropriate optics)
Optics Available	30°, 60°, 90°, 120°, Double Asymmetric, FU (10% uplight), FD (0% uplight), NR (Narrow)
Dimming	DALI, 1-10V, DIMswitch
Lifetime	50,000 – 100,000 hrs
IP Rating	IP20
Warranty	5 years

Frequently Asked Questions

What makes U-LINE ideal for glare-free classroom lighting?

U-LINE provides UGR<19 (glare-free) and indirect light distribution (10% uplight) that reduces eye strain and improves concentration — meeting EN12464-1 standards for educational and workplace lighting. Perfect for replacing outdated fluorescent indirect fixtures.

What is the difference between FU and FD optics?

FU (Flat Uplighting) directs 10% of light to the ceiling and 90% down, creating soft ambient illumination. FD (Flat Direct) is 100% downlight for focused task lighting — both available in 120° beam angle.

Can U-LINE be used to replace fluorescent indirect lighting?

Yes. U-LINE is designed as a direct retrofit for existing fluorescent indirect systems. It mounts on standard trunking rails and delivers 135–150 lm/W vs 60–80 lm/W of fluorescent, saving 60-80% energy.

Is U-LINE suitable for open plan offices with computer screens?

Absolutely. The UGR<19 rating and indirect light distribution minimize screen reflections and glare, making it an excellent low UGR linear light for offices.

Does U-LINE support emergency lighting?

Yes. Self-contained battery backup options are available, with automatic switch-over during power failure. DALI emergency versions also supported.

Upgrade to Glare-Free Indirect Lighting

Request a quote for your school, office, or commercial project.

Get a Quote → Email Sales Team
