H-LINE — PROFESSIONAL OFFICE LIGHTING

H-LINE Office Linear Light
with Tunable White

DT8 DALI-2 tunable white from 2700K to 6500K. UGR<19 micro-prismatic optics for glare‑free comfort. Plug‑and‑play trunking system — the professional choice for modern offices, meeting rooms, and coworking spaces.

142 lm/W DT8 DALI-2 UGR <19 5-Year Warranty
Get Quote View Specifications

Plug & Play

Tool‑free snap‑fit, 70% faster install

UGR<19

Micro‑prismatic, glare‑free

DT8 Tunable White

2700–6500K, DALI‑2

Linkable

Seamless rows up to 100m

Precision Optics for Every Office Layout

All optics achieve UGR<19 — guaranteed glare‑free comfort

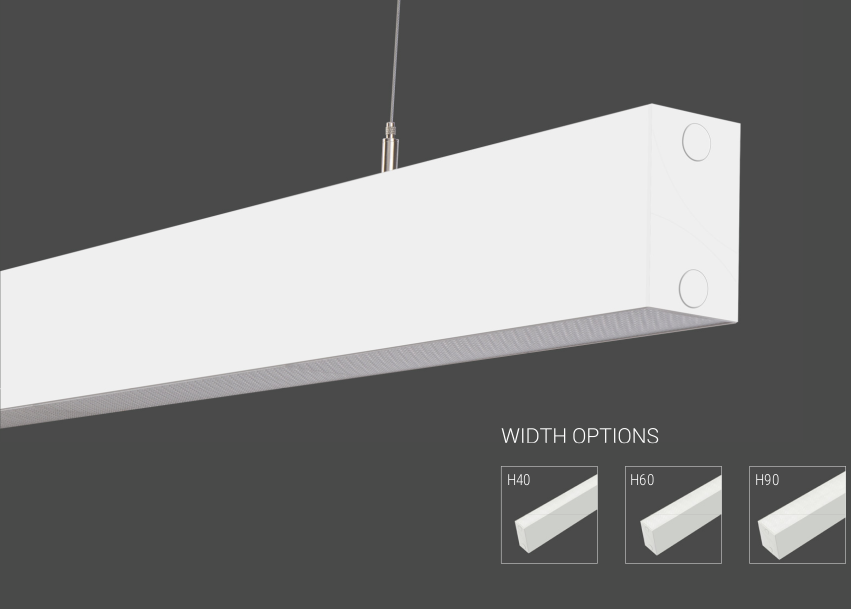

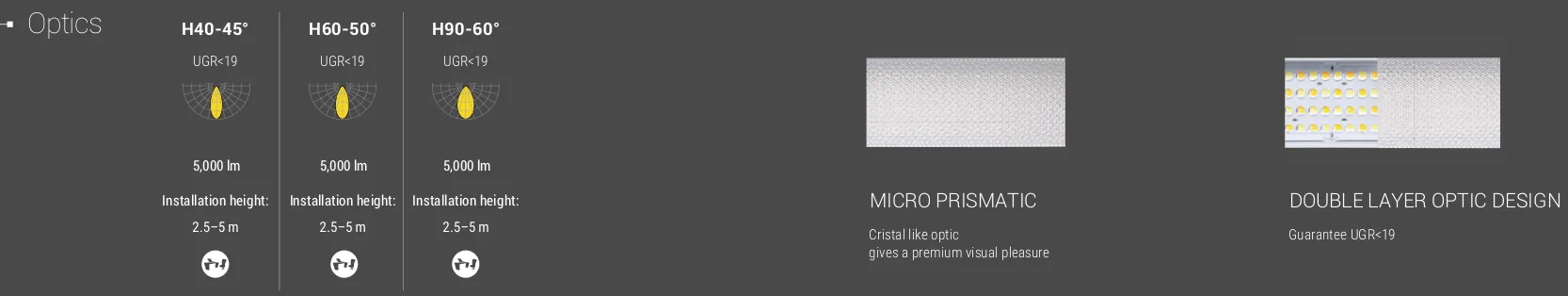

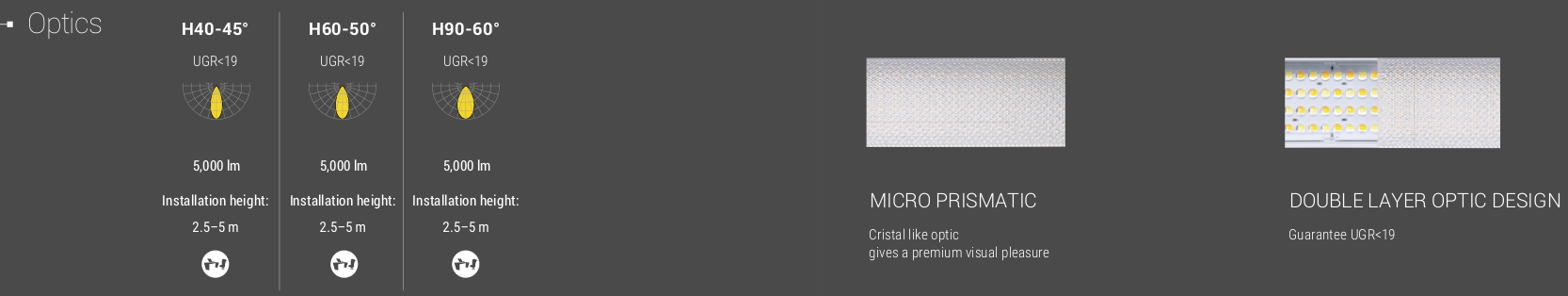

H-LINE beam angle options: H40-45°, H60-50°, H90-60°
H40-45°
Narrow beam for focused task lighting on desks
UGR <195,000 lm2.5–5 m
H60-50°
Balanced beam for general office areas
UGR <195,000 lm2.5–5 m
H90-60°
Wide beam for high ceilings and open plans
UGR <195,000 lm2.5–10 m
✨ Micro‑prismatic double‑layer optic guarantees UGR<19 and crystal‑clear light quality.

Human‑Centric Lighting with DT8 DALI‑2

Adjust color temperature from warm 2700K to cool 6500K to support circadian rhythms — energising cool light in the morning, warm relaxing light in the afternoon. Ideal for activity‑based workspaces, meeting rooms, and executive offices.

  • ✓ Open plan offices – uniform UGR<19 illumination
  • ✓ Meeting rooms – tunable white for presentations
  • ✓ Private offices – premium micro‑prismatic aesthetics
  • ✓ Corridors & break areas – sensor ready

Tunable White & Office Productivity

TimeCCTBenefit
Morning5000‑6500KAlertness, focus
Afternoon4000‑5000KSustained productivity
Evening2700‑3500KRelaxation

*DT8 DALI‑2 driver allows individual or group control via BMS.

Technical Specifications

Input Voltage220‑240VAC, 50/60Hz
Power1200mm: 35W / 1500mm: 45W (custom)
Lumen Output5,000 lm (standard)
Efficacy142 lm/W
CCTTunable White 2700‑6500K (DT8 DALI‑2)
CRI>80Ra / >90Ra | R9>0, SDCM<3
UGR<19 (micro‑prismatic)
DimmingDALI‑2 DT8, 1‑100% smooth
Lifetime50,000 hrs
FlickerSVM ≤0.4, Pst LM ≤1.0
IP RatingIP40
Warranty5 years

Global Office Lighting Projects

Proven H-LINE performance in real-world office environments across Europe.

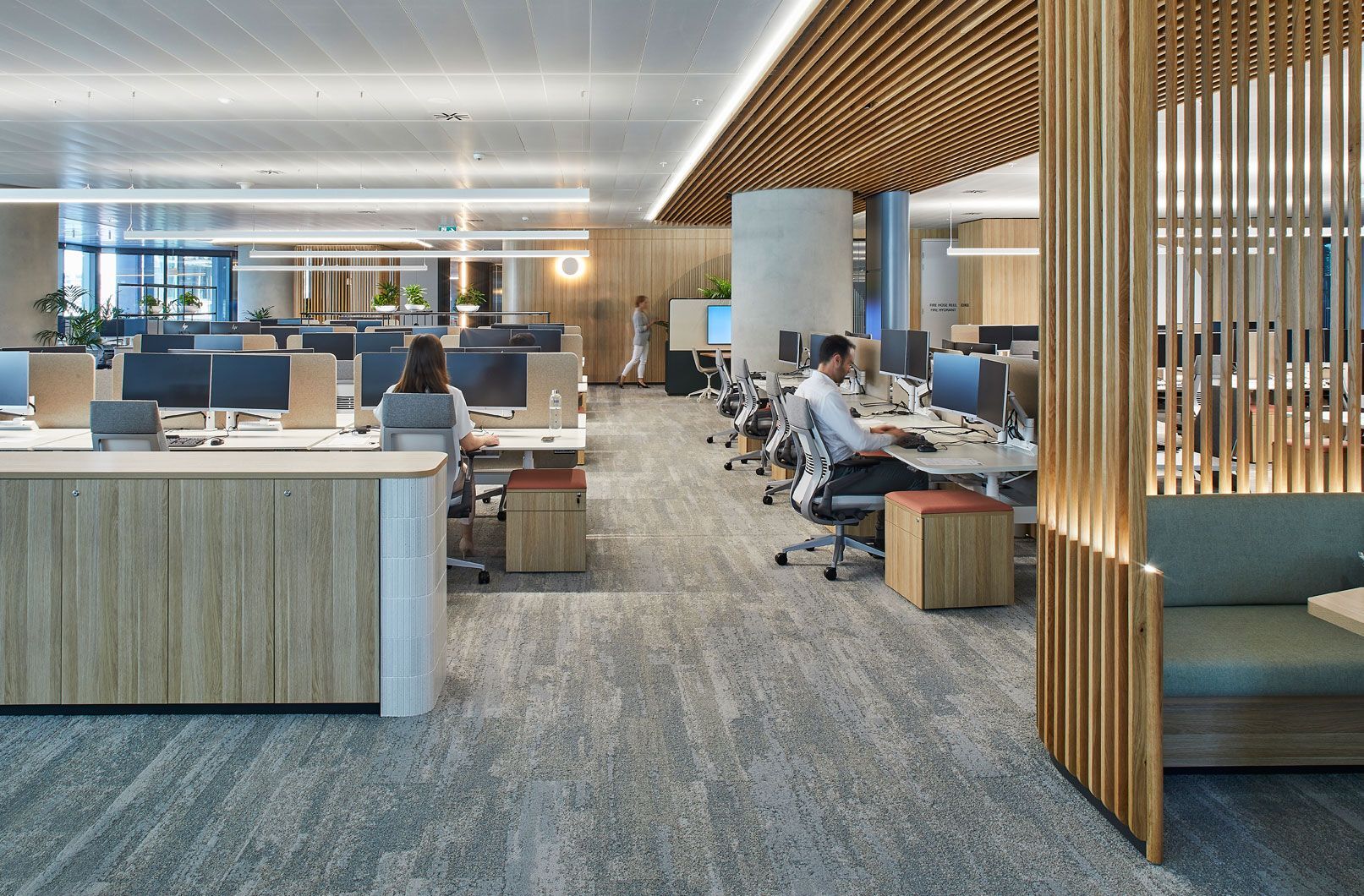

H-LINE office retrofit in Berlin, Germany

H‑Line Office Retrofit – Berlin

Berlin, Germany

61% Energy Saving

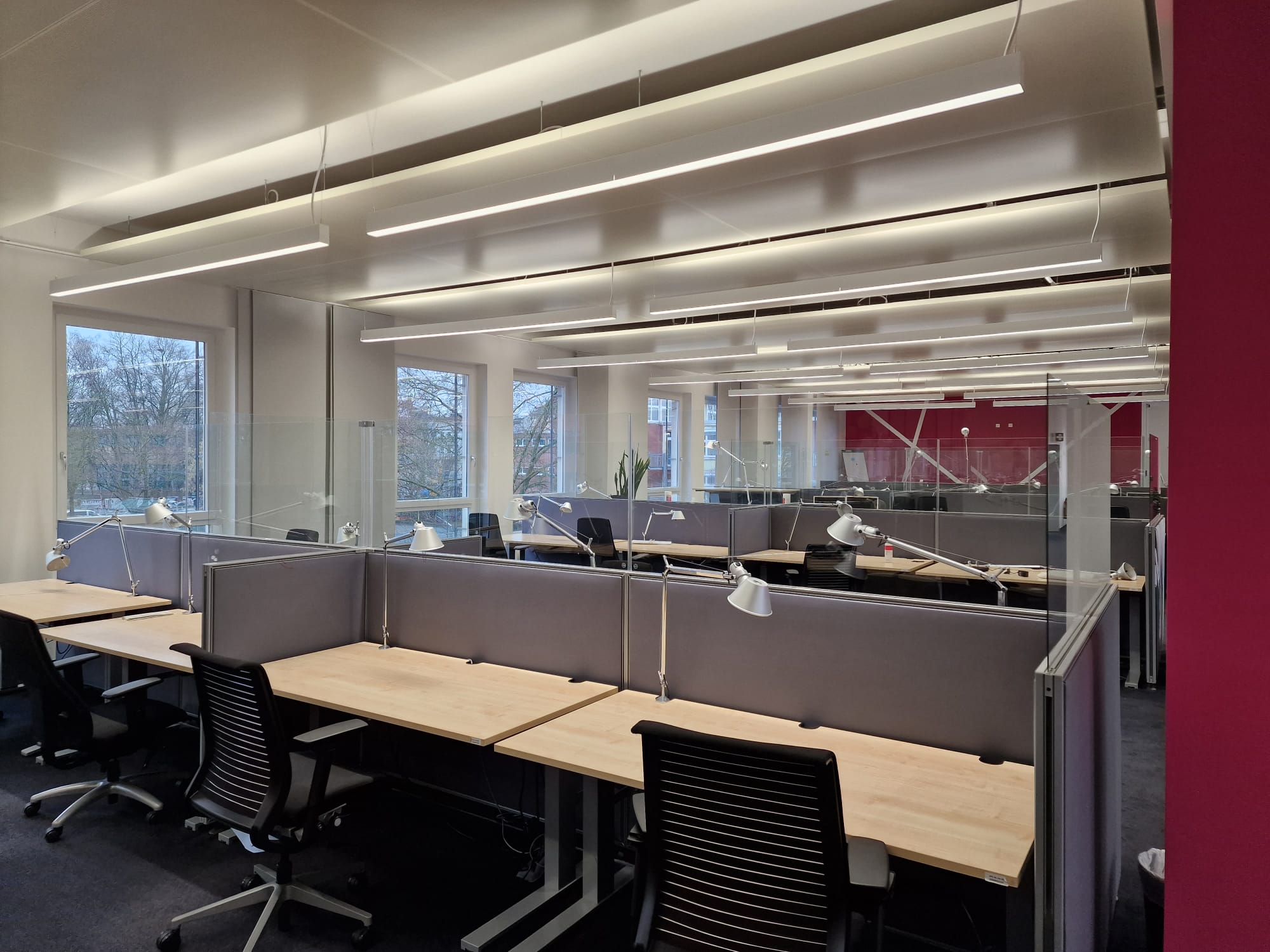

 H-LINE office retrofit in Munich, Germany

H‑Line Office Retrofit – Munich

Munich, Germany

58% Energy Saving

 H-LINE office retrofit in Amsterdam, Netherlands

H‑Line Office Retrofit – Amsterdam

Amsterdam, Netherlands

59% Energy Saving

Frequently Asked Questions

What makes H-LINE ideal for office environments?
H-LINE features UGR<19 micro-prismatic optics eliminating glare, plus DT8 DALI-2 tunable white (2700K-6500K) to support circadian rhythms. The plug-and-play trunking system reduces installation time by 70%.
What is the difference between H40, H60 and H90 optics?
H40-45° (narrow 45° beam) is perfect for individual workstations. H60-50° (50° beam) suits general office areas. H90-60° (60° beam) works best for high ceilings up to 10m.
Can I integrate H-LINE with existing DALI systems?
Yes. H-LINE uses DALI-2 DT8 driver, fully backward compatible with DALI-1, supports tunable white, scene setting, and energy monitoring.
What are the energy savings vs fluorescent?
With 142 lm/W efficacy, H-LINE reduces energy consumption by 65-75%. Payback period typically 12-18 months.
Does it support emergency lighting?
Yes. Integrated DALI emergency driver option provides 90+ minutes of backup, meeting local safety codes.
Can I get custom lengths or sensors?
Standard lengths: 1200mm and 1500mm. Custom up to 2400mm. Plug-in microwave motion and daylight harvest sensors available.

Upgrade Your Office with Tunable White Lighting

Request a quote or free lighting design consultation.

Get Quote → Email Sales
