S-LINE Motion Sensor Module
Intelligent microwave sensor module for automated lighting control. Combines motion detection and daylight sensing to maximize energy savings — up to 85% reduction in commercial and industrial environments.
Basic Information
| Place of Origin | Guangdong, China |
| Certification | ULLVDCEENECTUVSAAC-TICKCBGSVDEETL |
| Model Number | CFM-0608-X1WH-X2 / CFM-0615-X1WH-X2 / CFM-1208-X1WH-X2 / CFM-1215-X1WH-X2 |
| Minimum Order Quantity | 1 set (sample order welcome) |
| Price | Negotiable |
| Packaging Details | One set in one box (1678 × 170 × 92 mm) |
| Delivery Time | 6 – 10 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20,000 – 25,000 sets / month |
Technical Specifications
| Item | S-LINE With Motion Sensor Module |
| Material | Aluminum Alloy + PMMA Lens / PC Cover |
| Length | 1200mm, 1500mm, 2400mm |
| CRI (Ra) | 80 / 95 |
| Sensor Type | Daylight Sensor; Motion Sensor; D+M (Daylight + Motion) Sensor |
| Beam Angle | 25° / 60° / 90° / 120° / Double Asymmetric |
| Dimming | DALI, 1-10V, DIMswitch |
| Light Color | Warm White, White, Cold White |
| Detection Method | Microwave (High Frequency) |
| Detection Range | 8m / 15m (selectable by model) |
| Horizontal Detection Angle | 80° (L1 on ground) |
| Vertical Detection Angle | 40° (L2 on ground) |
| Horizontal Rotation | 330° |
| Vertical Rotation | 60° |
| Mounting Height | ≥ 3m (recommended) |
| Hold Time | Configurable — time at 100% after last motion |
| Stand-by Time | Configurable — dimmed level before switch-off |
| Warranty | 5 years |
| Lifespan | 50,000 hours |
| Application | Warehouse, Office, Supermarket, Factory, Corridor, Parking |
Product Description
S-LINE Multi-Sensor System — The intelligent sensor module integrates motion and daylight detection into the S-LINE trunking system, delivering significant energy savings while maintaining optimal illumination.
Microwave Detection Technology — Unlike passive infrared (PIR) sensors, our microwave sensor offers long-distance detection with high resistance to temperature variation. It penetrates non-metallic obstacles and operates reliably in unconditioned environments.
Three Operating Modes — Daylight mode (self-adjusts brightness based on ambient light), Motion mode (detects human presence up to 15m away), and combined D+M mode (motion-triggered with daylight-based dimming for maximum efficiency).
Sensor Operating Modes
Three intelligent modes for flexible energy management
Daylight Sensor
Continuously monitors ambient light levels. Automatically adjusts LED brightness to maintain the target illuminance, harvesting natural daylight to reduce energy consumption without compromising visual comfort.
Motion Sensor

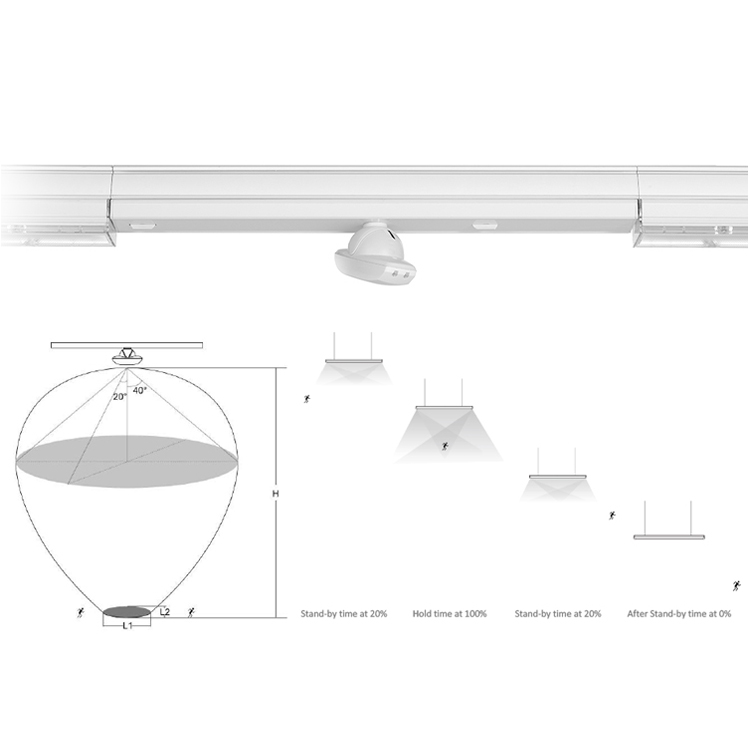

Detects long-distance human motion via high-frequency microwave. When presence is detected, luminaires switch to full brightness. After the adjustable hold time with no motion detected, the system dims or switches off, eliminating waste in unoccupied zones.
Motion + Daylight
The most energy-efficient mode. Combines motion presence detection with daylight harvesting. Lights automatically set to the required brightness based on ambient light, then dim to stand-by level after the hold time, and switch off completely after the stand-by period for maximum savings.
Detection Coverage & Configuration

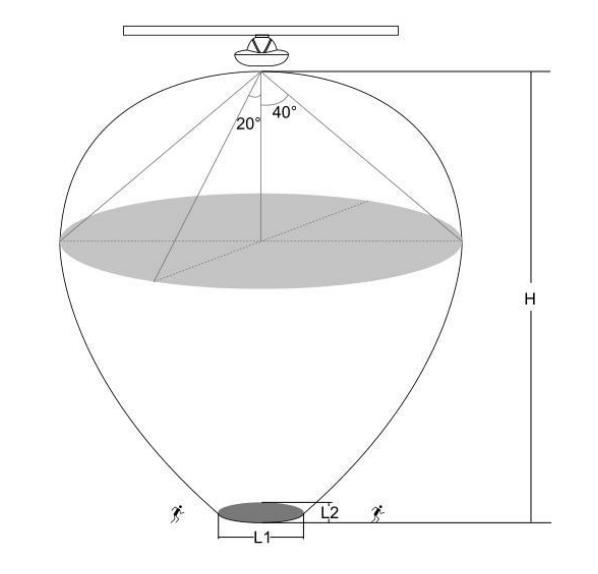

Detection Range by Mounting Height
| Height (H) | L1 (Horizontal) | L2 (Vertical) |
|---|---|---|
| 3m | 5.0m | 2.1m |
| 6m | 10.0m | 4.3m |
| 8m+ | Up to 15m | Up to 8m |
Time Configuration
| Parameter | Description |
|---|---|
| Hold Time | Time the lamp stays at 100% brightness after motion leaves the area |
| Stand-by Time | Time at lower brightness before full switch-off. Set to 0s for immediate off, or +∞ for permanent dimmed mode |
* Detection distance can increase by 20% in open spaces with no obstructions. Metal surfaces (e.g. shelving) may reduce detection range.
Available Models & Code Numbers
| Length | Detection Range | Code No. |
|---|---|---|
| 600mm | 8m detection | CFM-0608-X1WH-X2 |
| 15m detection | CFM-0615-X1WH-X2 | |
| 1200mm | 8m detection | CFM-1208-X1WH-X2 |
| 15m detection | CFM-1215-X1WH-X2 |
Sensor Advantages
Why our microwave sensor outperforms conventional alternatives
Long-Range Detection
Up to 15m detection distance — significantly outperforms competing brands. Multiple microwave sensors can be installed along the S-LINE trunking for complete coverage of large spaces.

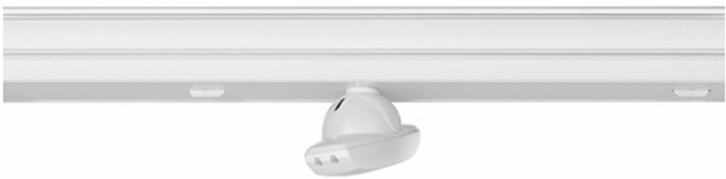

330° Rotation Flexibility
The sensor swivels 330° horizontally and 60° vertically, allowing precise targeting of the detection zone. Ideal for aisles, corridors, and shelving areas where directional coverage is needed.
Temperature Resistant
High immunity to ambient temperature variation. Unlike PIR sensors that struggle in unconditioned spaces, our microwave sensor works reliably in warehouses, cold storage, and outdoor canopies.
Up to 85% Energy Savings
Combined D+M (Daylight + Motion) mode delivers maximum efficiency. Lighting automatically adjusts based on occupancy and natural light availability, eliminating waste in partially occupied or well-daylit zones.
Why Choose FusionBrite Sensors
Industry-leading detection performance backed by global certifications
Frequently Asked Questions
Everything you need to know about our Motion Sensor Module
What is the difference between the 8m and 15m detection models?
Can the motion sensor module be retrofitted to existing S-LINE installations?
How does the Motion + Daylight combined mode work?
What is the coverage area for one sensor module?
Does the sensor work through metal shelves or partitions?
Can I adjust the hold time and stand-by time?
Is the sensor compatible with DALI dimming systems?
What certifications does the sensor module hold?
