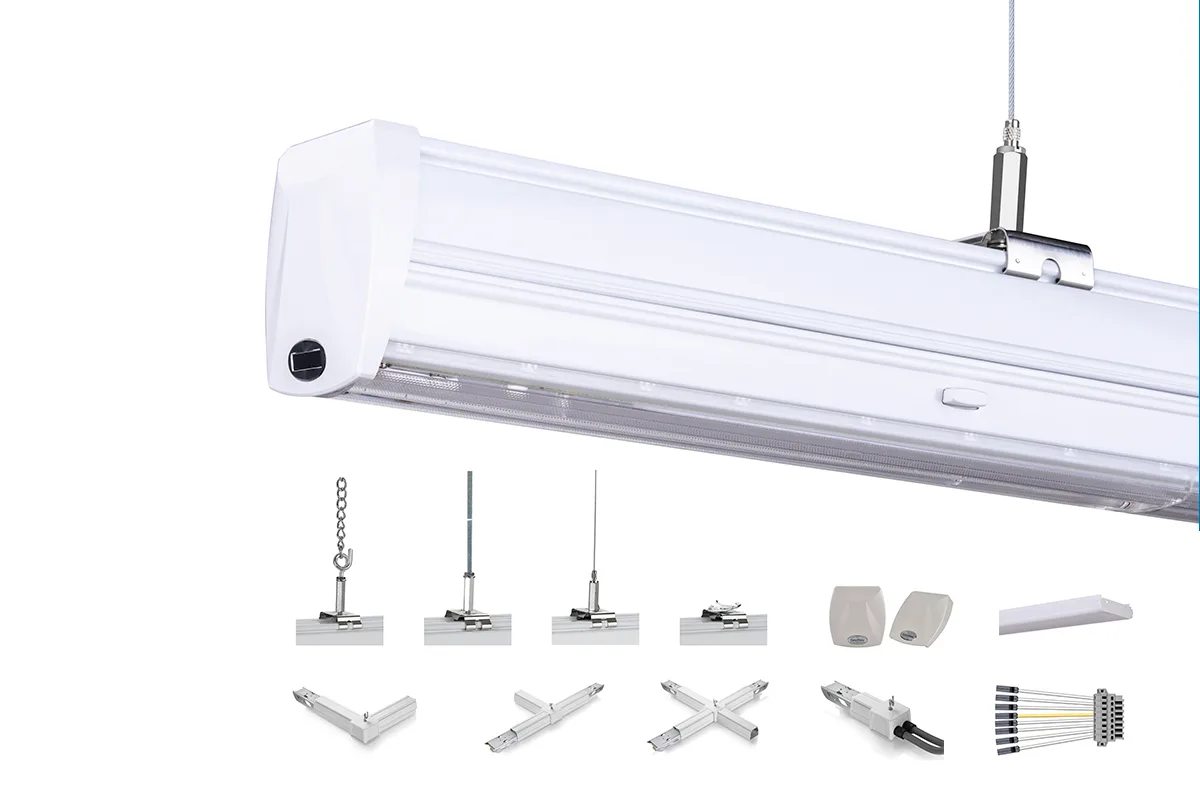

LED Linear Lighting System

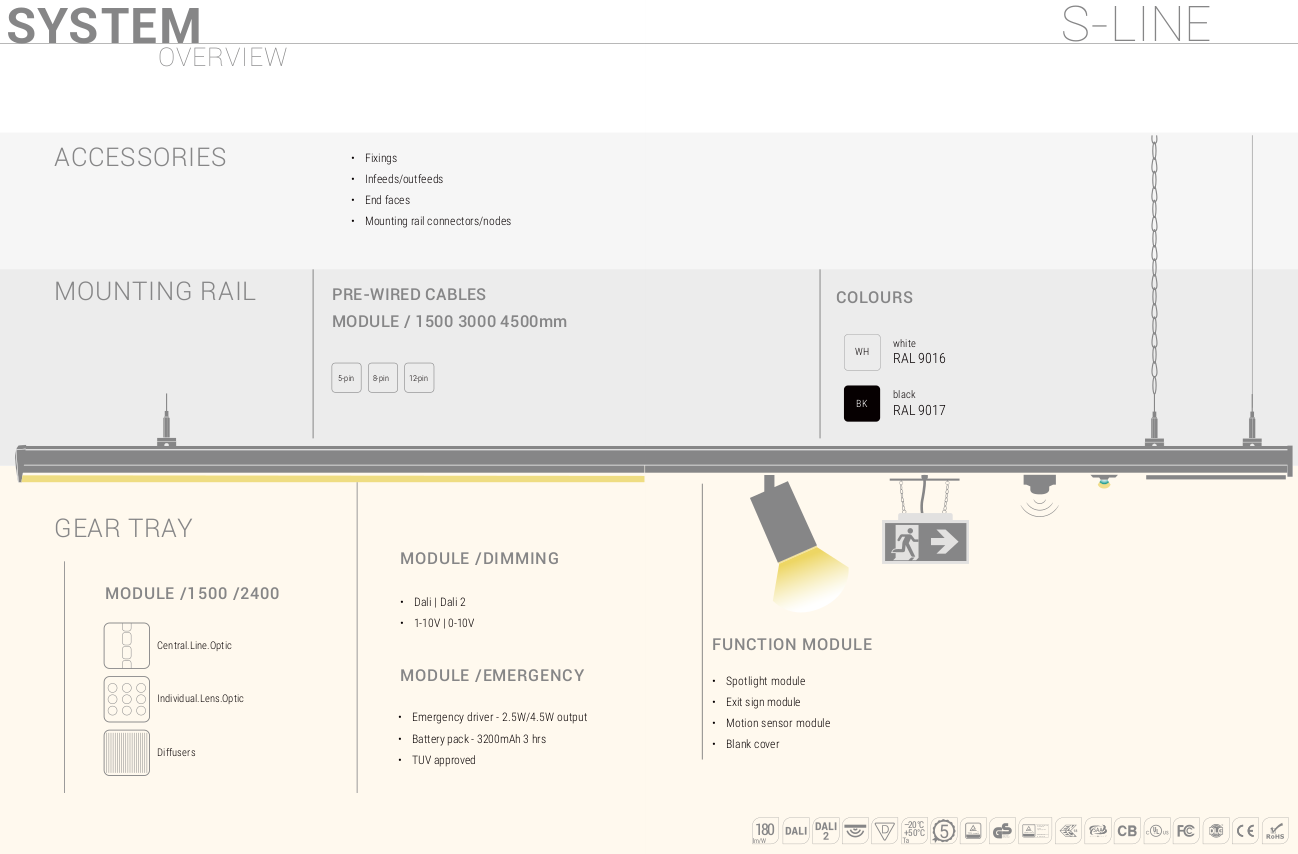

One system for every application — supermarkets, warehouses, retail stores, offices, and parking garages. The S-LINE modular trunking system delivers up to 195 lm/W efficacy with tool-less gear tray replacement, plug-and-play function modules, and seamless continuous runs up to 100 meters.
Tool-less Maintenance
Swap drivers or LEDs in seconds without dismantling the fixture. Reduce maintenance costs by 60%.
Emergency & Sensor Ready
Integrated emergency battery and motion sensor slots. No external wiring needed.

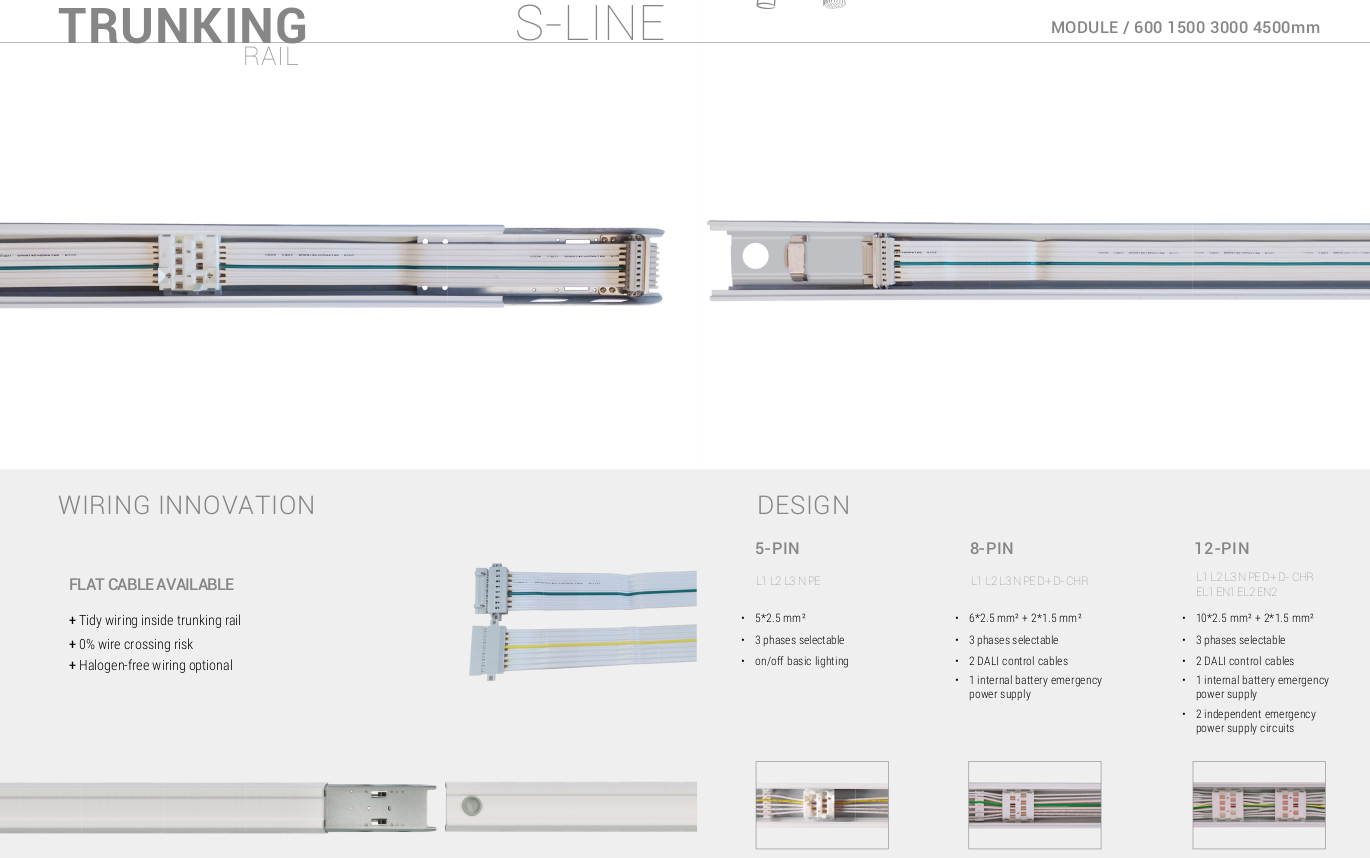

Continuous Run
Seamless connection up to 100 meters. Perfect for supermarket aisles, warehouse racks, and parking structures.
Technical Specifications
Optical Performance
- Efficacy: 195 lm/W
- CRI: 80 / 90 / 95 (High CRI)
- UGR: < 19 (Anti-Glare)
- Beam Angles: 30° /60° / 90° / 120° / Asymmetric / Double Asymmetric
Electrical & Mechanical
- Input Voltage: AC220-240V / 100-277V (50/60Hz)
- Power Options: 35W, 50W, 65W, 70W, 100W, 150W
- Dimming: DALI, 1-10V, DIMswitch
- IP Rating: IP20 (standard) / IP65 (optional)

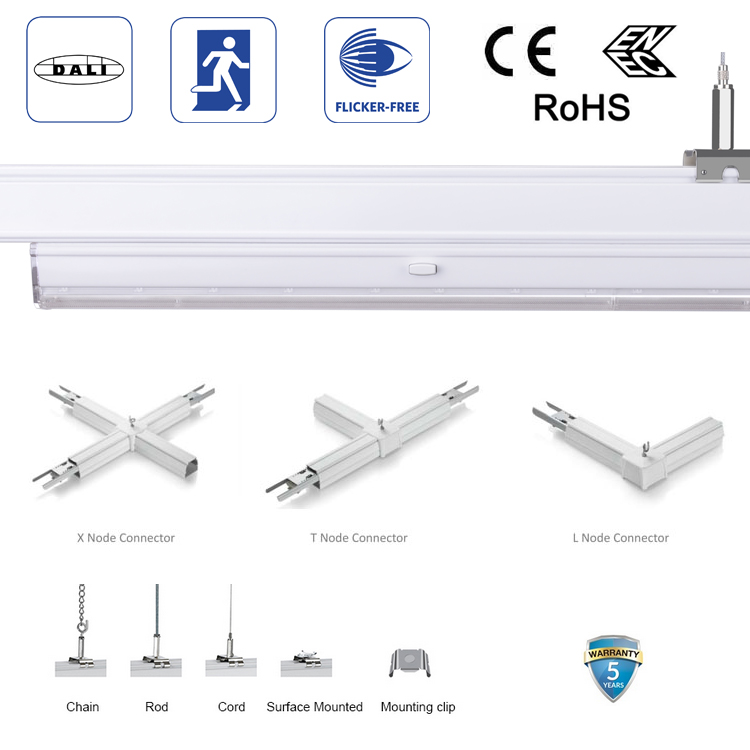

- Mounting: Surface, Pendant (chain/cord), Recessed
- Lifespan: 70,000 hours L70
- Warranty: 5 years

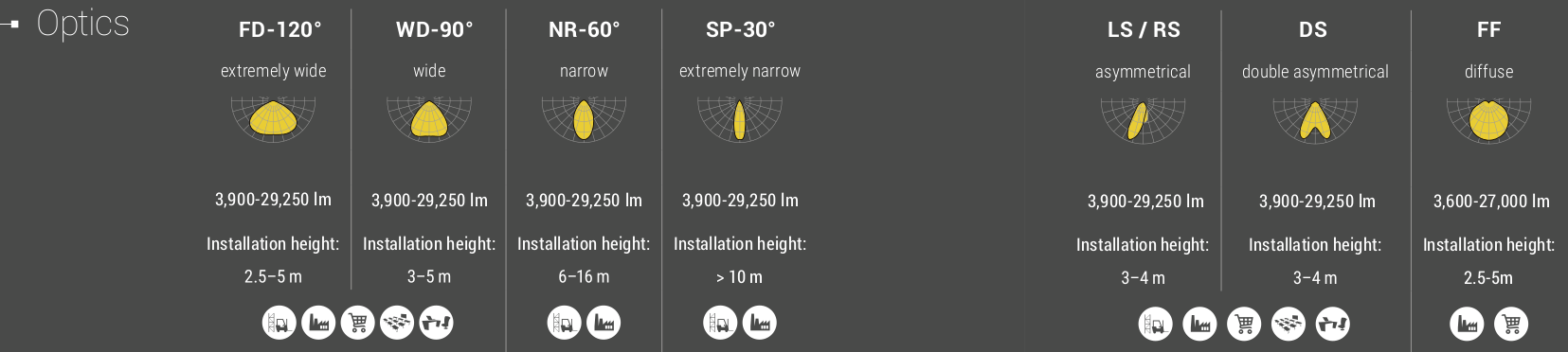

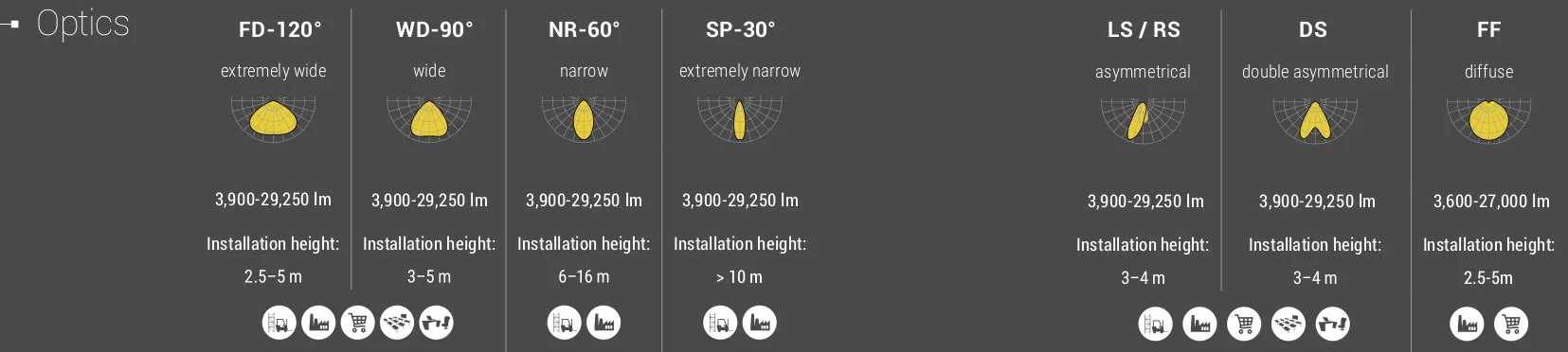

Optical Lens Specifications
| Type | FD-120° | WD-90° | NR-60° | SP-30° | LS / RS | DS | FF |
|---|---|---|---|---|---|---|---|
| Description | Extremely wide | Wide | Narrow | Extremely narrow | Asymmetric | Double asym. | Diffuse |
| Lumen Range | 3,900–29,250 lm | 3,900–29,250 lm | 3,900–29,250 lm | 3,900–29,250 lm | 3,900–29,250 lm | 3,900–29,250 lm | 3,600–27,000 lm |
| Mount Height | 2.5–5 m | 3–5 m | 6–16 m | >10 m | 3–4 m | 3–4 m | 2.5–5 m |

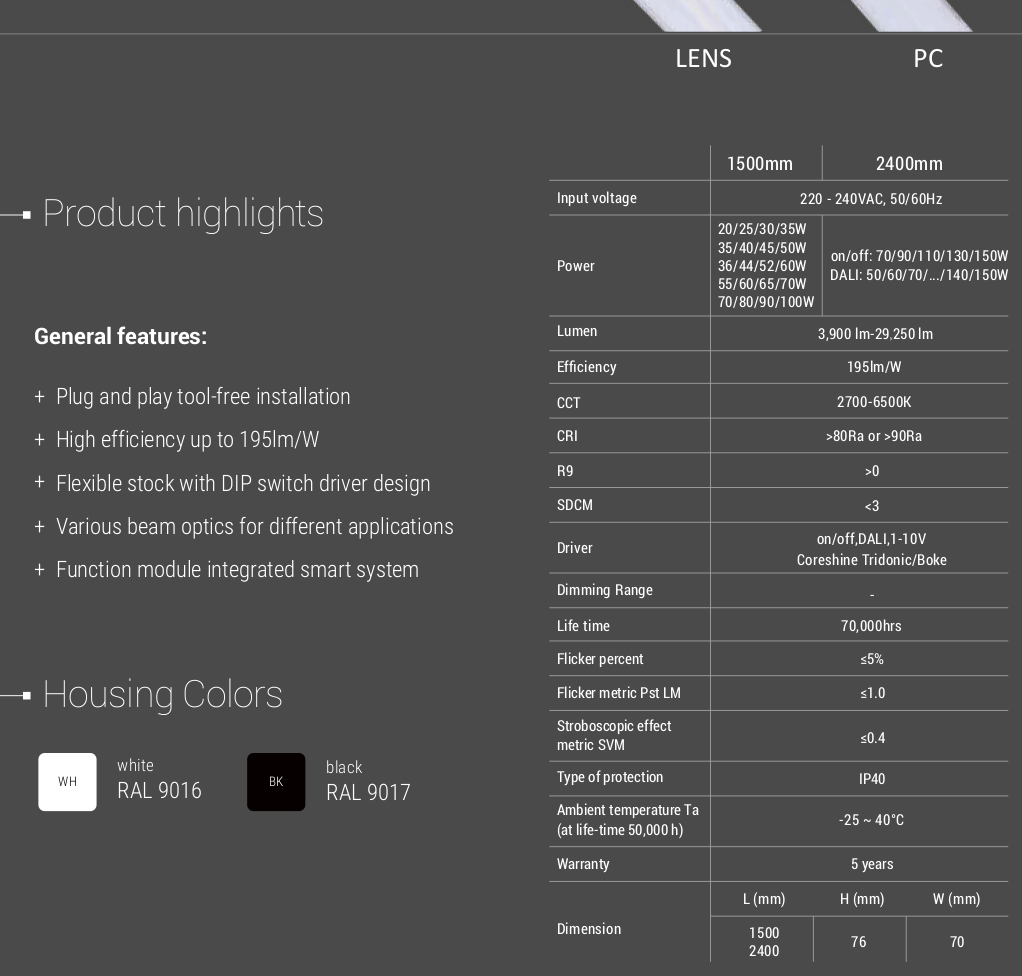

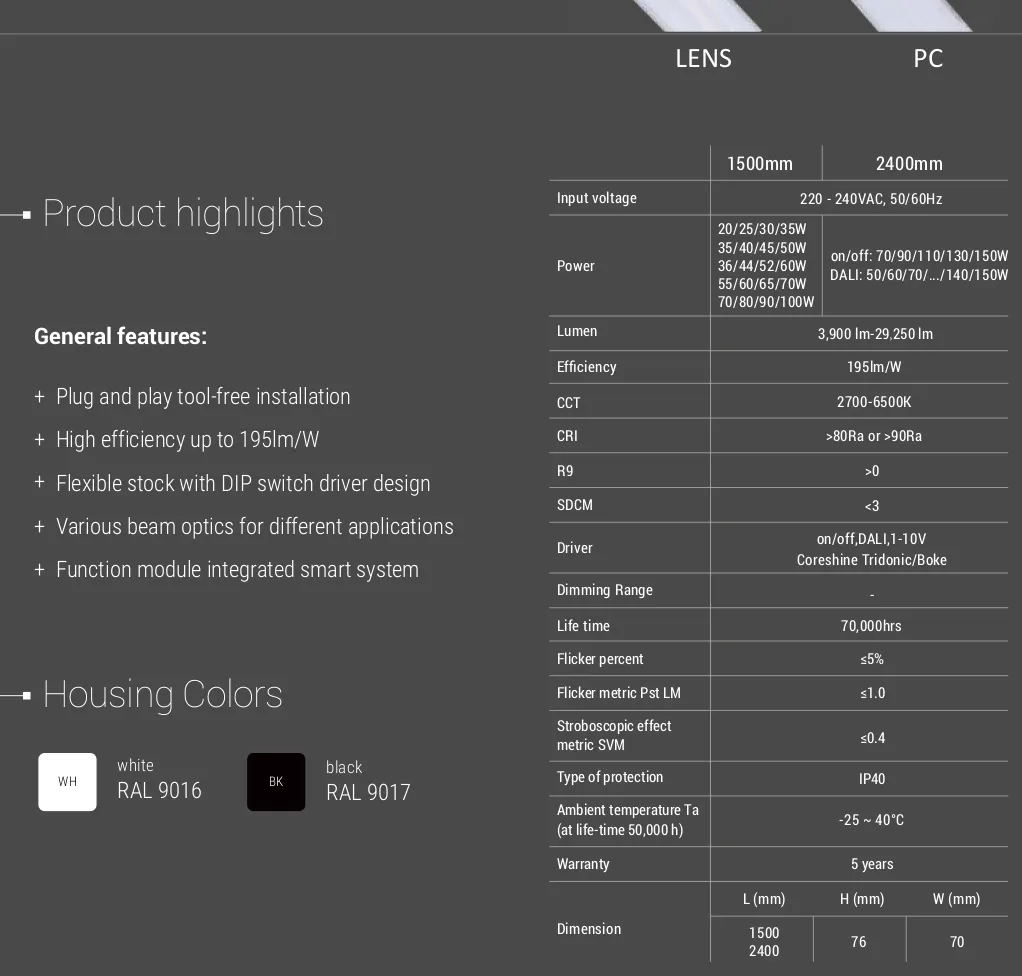

Detailed Specifications
| Parameter | 1500mm | 2400mm |
|---|---|---|
| Power | on/off: 20/25/30/35W 35/40/45/50W 36/44/52/60W 55/60/65/70W 70/80/90/100W | on/off: 70/90/110/130/150W DALI: 50/60/70/…/140/150W |
| Lumen Range | 3,900 – 29,250 lm | Same as 1500mm |
| Efficacy | 195 lm/W | Same as 1500mm |
| CCT | 2700 – 6500K | Same as 1500mm |
| CRI | >80Ra or >90Ra | Same as 1500mm |
| R9 | >0 | Same as 1500mm |
| SDCM | <3 | Same as 1500mm |
| Driver | on/off, DALI, 1-10V Coreshine / Tridonic / Boke | Same as 1500mm |
| Lifetime | 70,000 hrs | Same as 1500mm |
| Flicker | ≤5% | Same as 1500mm |
| Protection | IP40 | Same as 1500mm |
| Ambient Temp | -25 to 40°C (70,000h lifetime) | Same as 1500mm |
| Warranty | 5 years | Same as 1500mm |
Optical Lenses
Multiple beam angle options to match your lighting application — from narrow spot to asymmetric distribution.

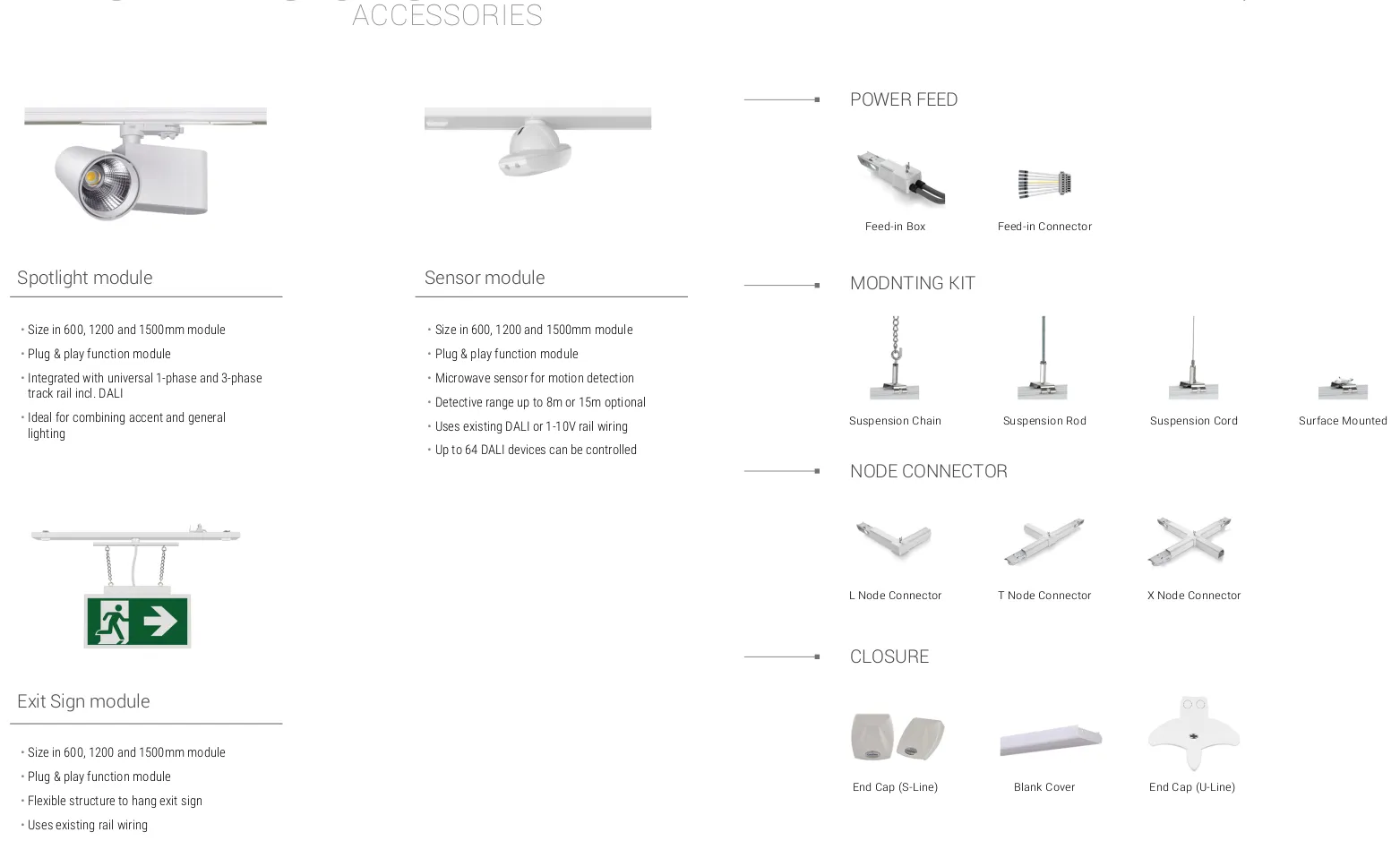

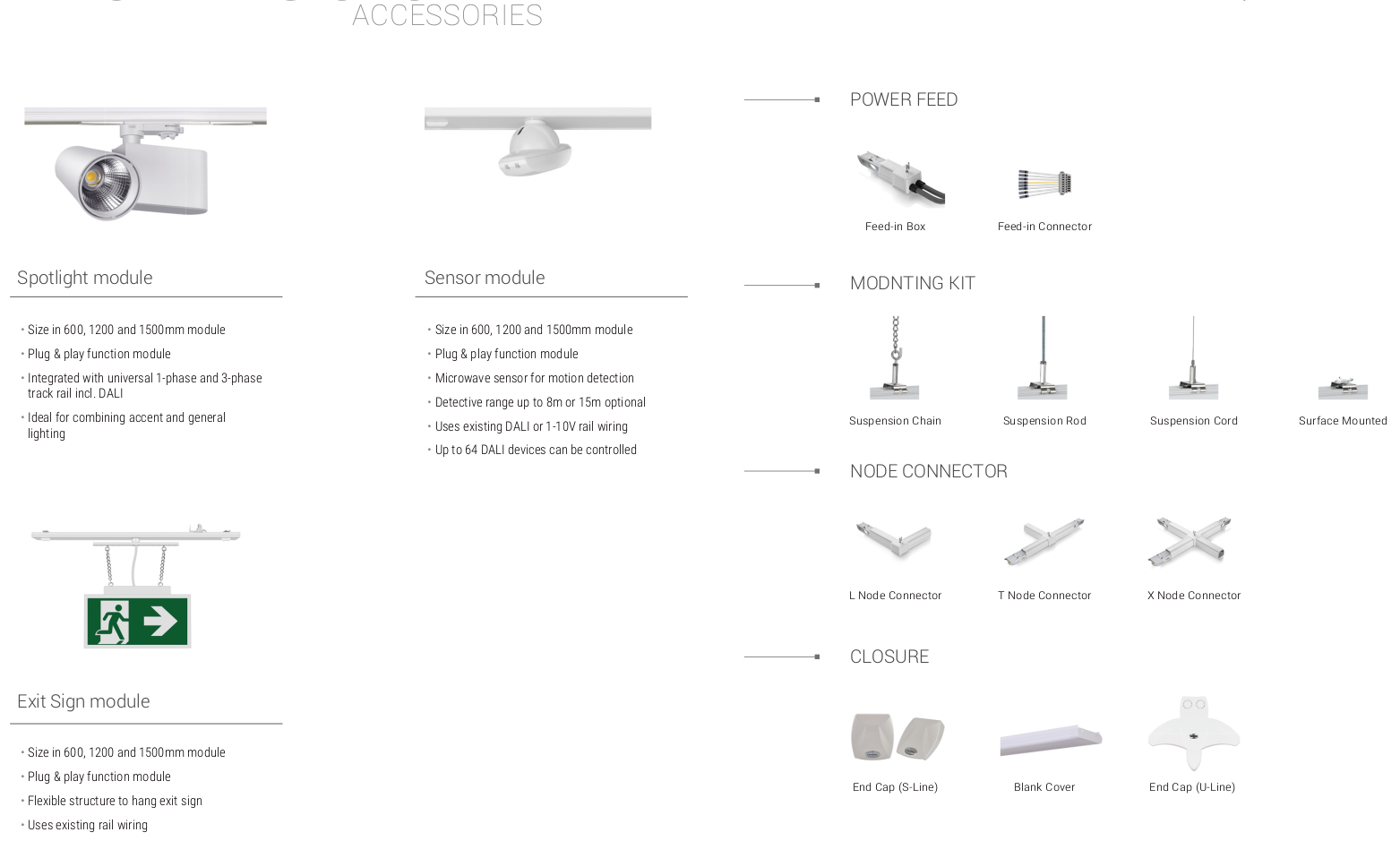

Accessories
Plug-and-play modules and accessories for emergency backup, motion sensing, and quick connector nodes.
Frequently Asked Questions
Everything you need to know about the S-LINE modular trunking system.
Can the S-LINE system be used for continuous row installation?
Is emergency battery backup available?
What is the typical payback period compared to fluorescent or metal halide?
Does it support DALI dimming and motion sensors?
Can I mount it in a cold storage or dusty environment?
Do you offer custom lengths or color temperatures?
Related Case Studies
Real projects using this product — verified energy savings and proven results
LED Linear Lighting Retrofit – Retail & Stores – Dubai
A flagship retail lighting upgrade in Dubai delivering €95,000 annual savings while meeting UAE Energy Strategy 2050 targets.

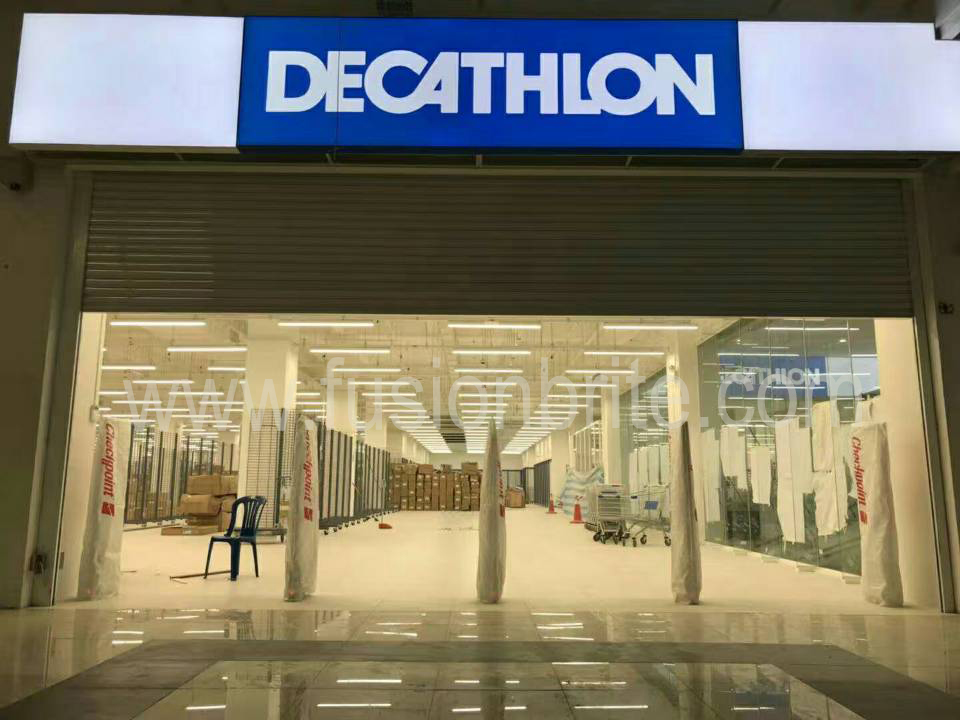

195 lm/W LED Linear Lighting Upgrade for Decathlon Sports Retail – Jakarta
High-efficacy 195 lm/W LED linear lighting for Decathlon Indonesia — 55% energy savings, CRI 82+ color accuracy, and 5-year warranty for sports retail environments.

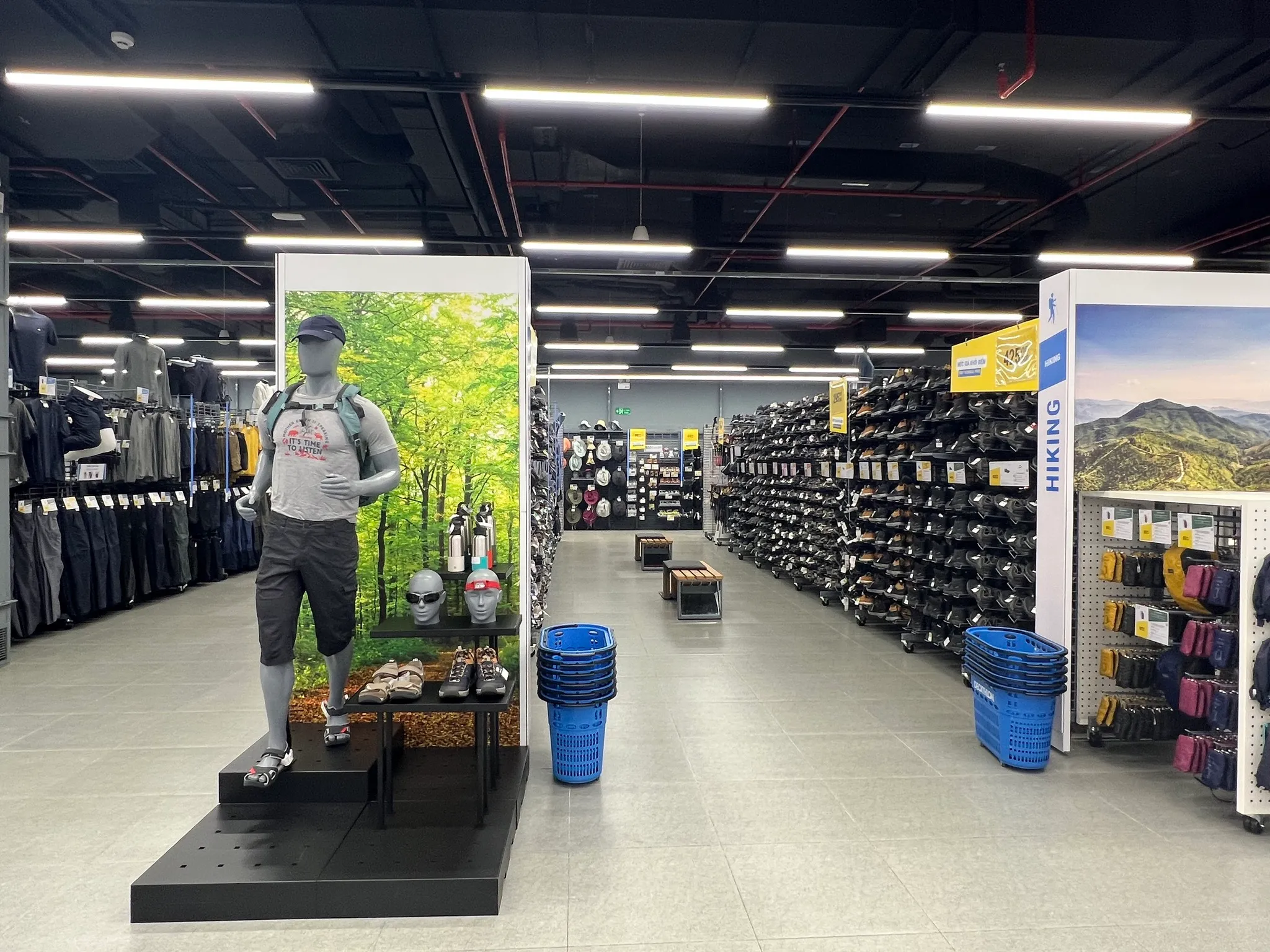

Decathlon Sports Store LED Lighting Upgrade – Ho Chi Minh City
Decathlon Vietnam selected FusionBrite’s 195 lm/W linear LED system for their new Ho Chi Minh City flagship. The 1.5m 50W fixtures delivered superior colour rendering and 70% energy savings over previous proposals.

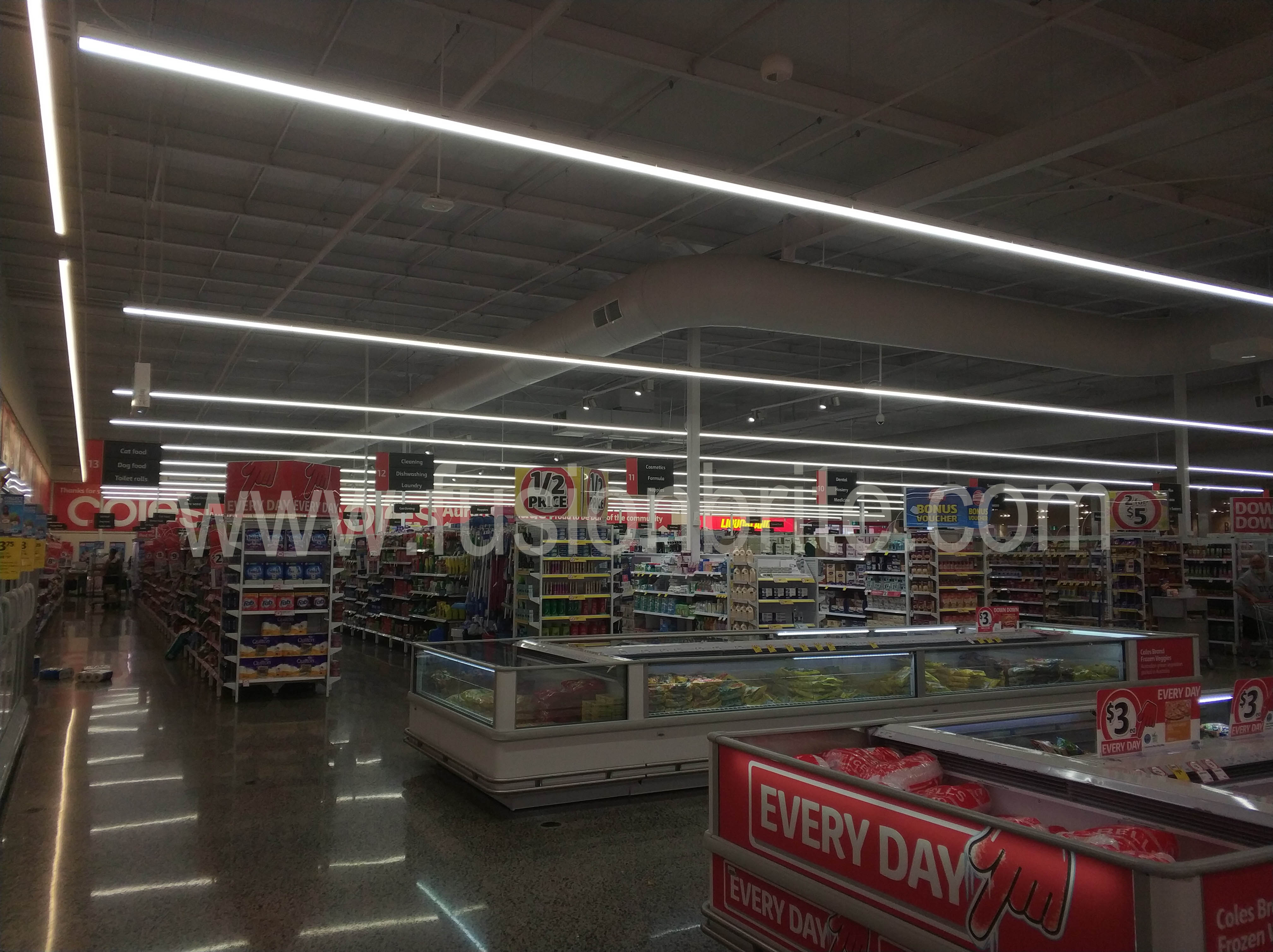

Coles Supermarket LED Lighting Retrofit – Sydney
FusionBrite delivered a full LED retrofit for a major Coles supermarket in Sydney, reducing energy consumption by 60% across 12,000 sqm of retail space.
Ready to Upgrade Your Facility?
Get a free lighting layout and ROI calculation. Our engineers are ready to assist with custom projects.
