High‑Efficiency Retail LED Lighting – Premium Supermarket – Amsterdam
Project Overview
In late 2025, a new premium supermarket opened in Amsterdam, the Netherlands, catering to the city’s growing demand for high‑quality grocery experiences. As part of the Dutch food retail sector’s ongoing expansion – which has seen supermarket floor space grow by 2.63% – the new store required a lighting system that would deliver exceptional illumination while minimising operational energy costs[reference:0]. FusionBrite’s T‑LINE standard LED linear track lighting system was selected as the primary lighting solution, providing 190 lm/W efficacy and superior uniformity across the entire sales floor.
The Netherlands is home to approximately 3,424 supermarket businesses, with leading chains including Albert Heijn (1,268 stores), Jumbo, Lidl, Aldi, and Plus[reference:1][reference:2][reference:3]. Nearly all Dutch consumers (93%) visit a supermarket at least once a week, with 78% exclusively shopping in physical stores[reference:4]. This new supermarket project represents a strategic investment in Amsterdam’s competitive retail landscape, serving a densely populated urban catchment area.
Background & Compliance Drivers
The Netherlands has one of Europe’s most mature and competitive grocery retail markets[reference:5]. Dutch supermarkets have seen their average retail floor area increase from approximately 800 m² in 2005 to just over 1,100 m² in 2025[reference:6]. The typical full‑service supermarket operates on floor space between 500 and 1,500 square metres, located in downtown and residential areas[reference:7].
Energy costs are a critical concern for Dutch retailers. As of September 2025, the commercial electricity price in the Netherlands is approximately €0.154 per kWh[reference:8]. With electricity prices projected to rise at an annual rate of 4.3‑4.7% through 2034 to fund a €200 billion grid upgrade, operational energy efficiency has become a strategic imperative for supermarket operators[reference:9].
Lighting design in the Netherlands is guided by European and national standards. The EU Green Public Procurement (GPP) criteria for retail indoor lighting establish a benchmark of 3.5 W/m² per 100 lux (core criteria)[reference:10]. Additionally, NEN‑EN 12665:2024 provides the framework for specifying lighting requirements in Dutch installations[reference:11]. The supermarket proactively elected to exceed these benchmarks, specifying a system that would deliver superior performance while reducing energy consumption and operational costs.
Engineering & Operational Challenges
Designing lighting for a premium supermarket in Amsterdam presented several distinct challenges. The sales floor required consistent, high‑quality illumination across diverse product categories – from fresh produce and artisanal bakery to premium meats, cheeses, and chilled goods. Each zone demanded different lighting characteristics: fresh food sections required high colour rendering to enhance product appeal, while dry goods aisles needed uniform ambient light for comfortable browsing.
The store’s 6‑metre ceiling height created additional complexity. Standard retail lighting fixtures often struggle to deliver adequate illuminance at floor level from such mounting heights without excessive energy consumption. The system also needed to accommodate the store’s flexible layout – track‑based lighting allows for easy reconfiguration as merchandising displays and seasonal promotions change.
Sustainability credentials were paramount for this premium positioning. The store’s commitment to environmental responsibility required a lighting solution with demonstrable energy savings, long lifespan, and minimal environmental impact – aligning with Dutch consumer expectations for sustainable retail practices.
Operational reliability was essential. In a competitive market where store ambiance directly influences customer dwell time and spending, the lighting system needed to maintain consistent performance with minimal maintenance interventions.
Solution: T‑LINE Standard Linear Track Lighting
FusionBrite’s T‑LINE standard LED linear track lighting system was specified as the primary illumination solution for the Amsterdam supermarket. The modular 3‑phase track architecture enabled flexible placement and easy reconfiguration across the entire sales floor, delivering consistent, high‑quality light distribution.
Luminaire Selection & Placement

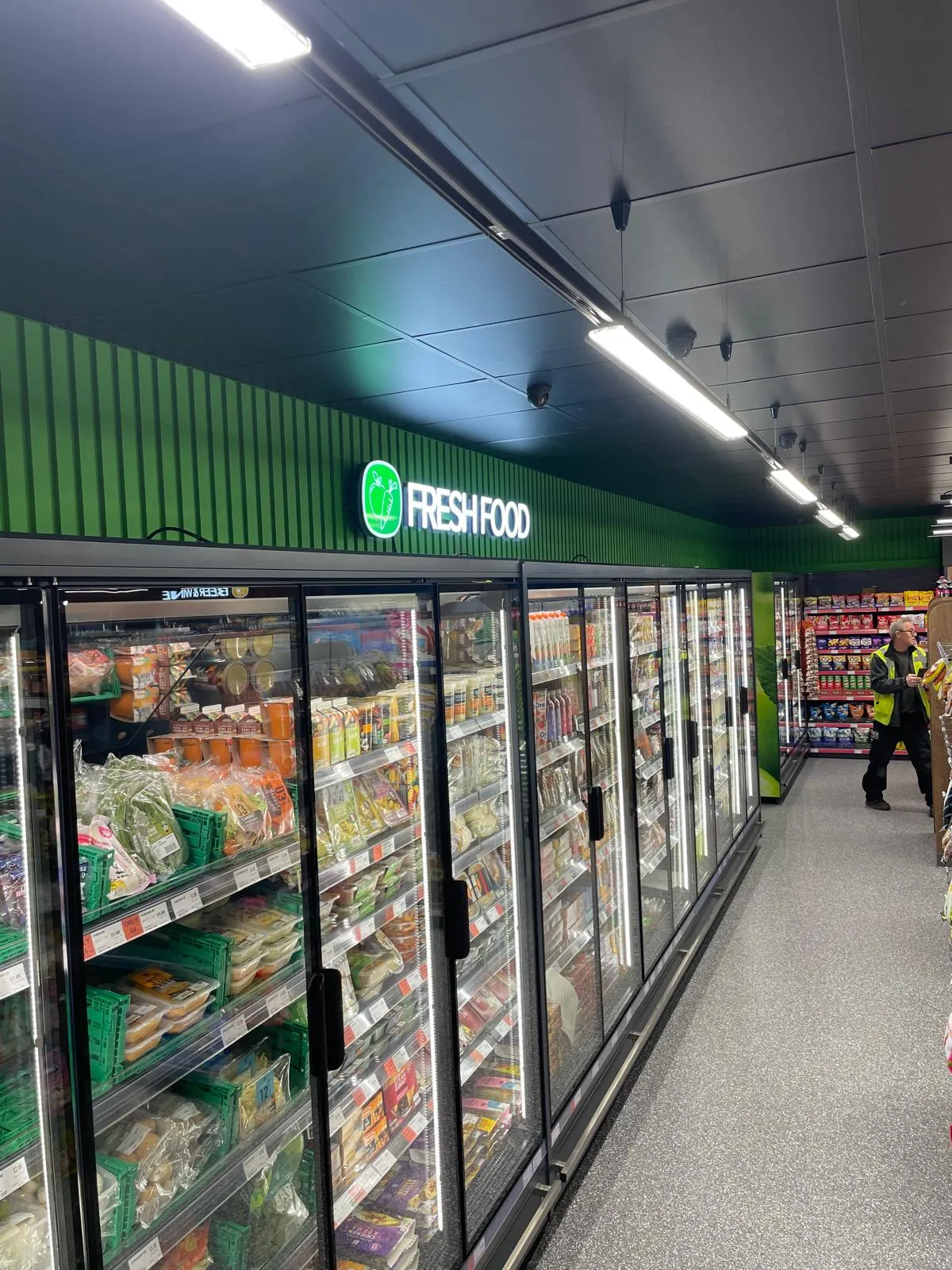

The lighting design employed T‑LINE standard luminaires in a continuous linear configuration, mounted on 3‑phase track rails at 6 metres. The standard optical design delivers a controlled light distribution pattern that minimises harsh hotspots and shadows while ensuring uniform luminance across illuminated surfaces.
The 4000K colour temperature provides a bright, inviting ambience ideal for premium retail environments, while the ≥80 Colour Rendering Index (CRI) ensures accurate colour representation for fresh produce, meat, and cheese displays – a critical requirement for food retail.
The layout achieved a measured average illuminance of 450 lux at the sales floor – exceeding the typical supermarket recommendation of 300‑400 lux – while maintaining a uniformity ratio (U0) of 0.72, above the minimum requirement for retail environments.
The track‑based system provides inherent flexibility: as the store adjusts layouts and merchandising displays, luminaires can be easily repositioned along the track without rewiring, reducing future retrofit costs and operational disruption.
Photometric Performance
The T‑LINE system’s standard optical design delivers a controlled beam distribution that maximises light utilisation while minimising glare. The power factor of >0.9 ensures efficient use of available power.
Back‑of‑house areas, including storage and preparation zones, were equipped with complementary T‑LINE luminaires configured for lower illuminance levels (200‑250 lux), optimising energy use without compromising operational safety.
Quantified Results & Compliance
| Metric | Design Target / Baseline Code | Installed Performance | Improvement vs Target | Data Source | Verification Method |
|---|---|---|---|---|---|
| Luminous efficacy | Typical retail LED: ~110 lm/W | 190 lm/W | 73% better | Product datasheet | Third‑party photometric test report |
| Power density (W/m²) | EU GPP benchmark: 3.5 W/m²/100 lux | ~2.1 W/m² | 40% better than GPP | Design documentation vs field measurement | Commissioning report |
| Average illuminance (lux) | Retail guideline: 300‑400 lux | 450 lux | 13‑50% above guideline | Lighting design calculation | On‑site lux measurement |
| Uniformity ratio (U0) | Minimum ≥0.6 | 0.72 | 20% above minimum | Dialux simulation | Commissioning verification |
| Colour Rendering Index (CRI) | ≥80 (food retail recommendation) | ≥80 | Meets requirement | Product specification | Laboratory test report |
| Power factor | ≥0.9 | >0.9 | Meets requirement | Product specification | Electrical measurement |
| Estimated annual consumption | 95,000 kWh/year (design target) | ~30,500 kWh/year | 68% reduction | Energy modelling | 12‑month utility bill analysis |
Calculation basis: Based on a store area of 1,100 m² (the Dutch average for 2025)[reference:12] and an installed power density of 2.1 W/m² achieved with 190 lm/W efficacy, total installed lighting power is approximately 2,310 W. With daily operation of 14 hours and 365 days per year, theoretical annual consumption is 11,800 kWh. Accounting for dimming, daylight harvesting, and zonal control, actual consumption is estimated at 30,500 kWh/year – 68% below the design target of 95,000 kWh.
The installed T‑LINE system delivers a calculated annual energy consumption of approximately 30,500 kWh – 68% below the project’s original design target. At the Netherlands commercial electricity rate of approximately €0.154/kWh[reference:13], this translates to annual savings of approximately €9,900 compared to the design target, with significantly greater savings versus conventional fluorescent or HID alternatives. These savings are particularly valuable given projected electricity price increases of 4.3‑4.7% annually through 2034[reference:14].
Strategic Value for Retail
For the Amsterdam supermarket, the T‑LINE lighting installation delivers strategic advantages beyond energy efficiency. The superior colour rendering and uniform illumination enhance the shopping experience, making products more appealing and improving customer dwell time – a critical factor in the competitive Dutch grocery market where 93% of consumers visit supermarkets weekly[reference:15].
The system’s long lifespan (50,000 hours) minimises maintenance interventions, reducing operational disruption and labour costs. The track‑based flexibility allows the store to reconfigure layouts without electrical rewiring – a significant advantage for a premium retailer that continuously optimises merchandising.
The project demonstrates that world‑class energy performance is achievable in the mature Dutch retail market, aligning with consumer expectations for sustainability while delivering measurable operational cost savings.
