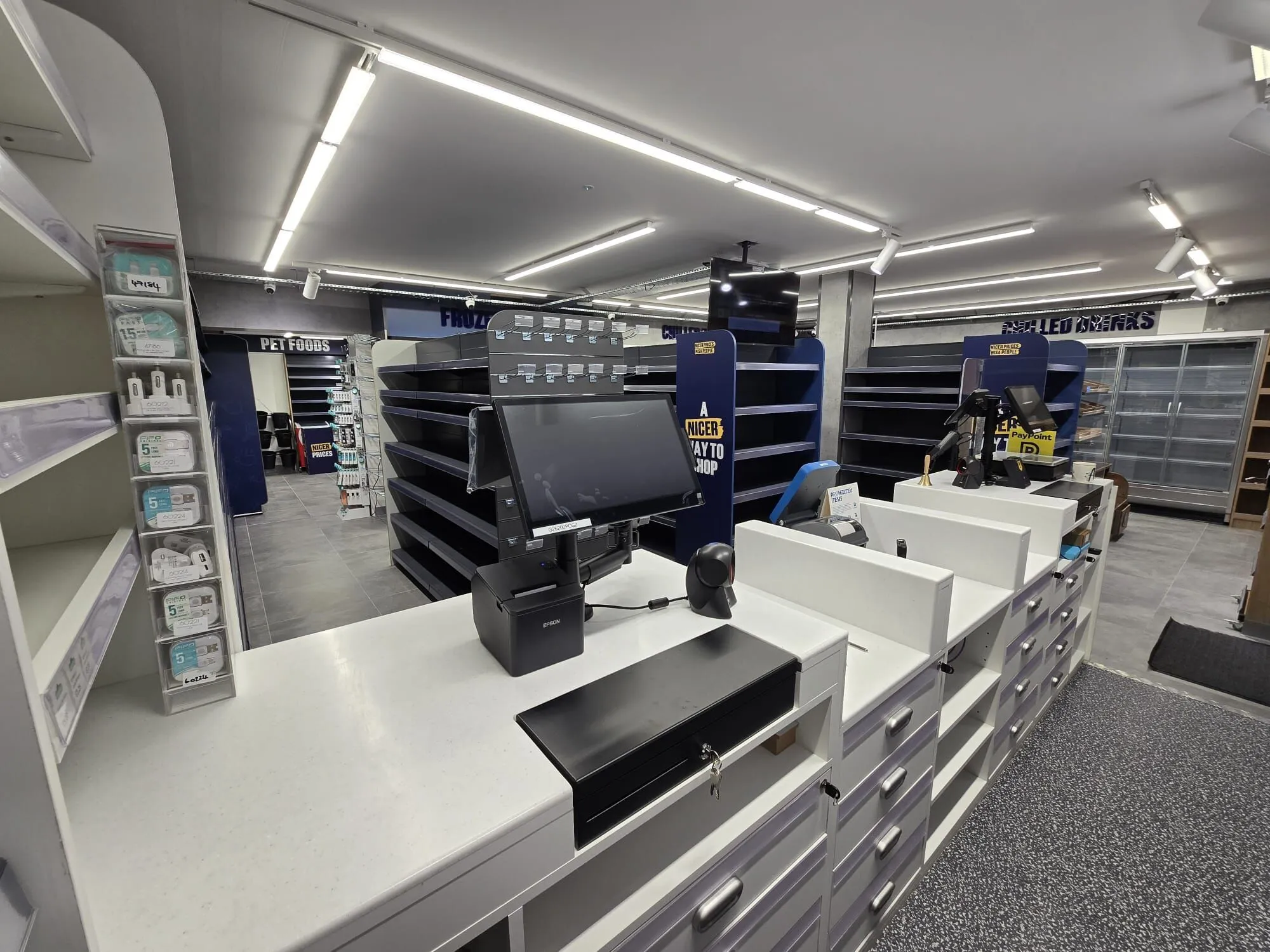

T‑Line LED Retrofit – Convenience Store – London
Project Overview
An independent convenience store – a traditional corner shop serving a residential catchment in South London – undertook a complete lighting modernisation in early 2026. The 65 m² sales floor (700 sq ft) operates 16 hours daily (06:00–22:00), seven days a week, with a mix of grocery shelves, chilled cabinets, a deli counter, and a Post Office counter. The original lighting comprised 18 twin‑T8 fluorescent battens (2×36 W each, magnetic ballasts, system efficacy ≈65 lm/W), delivering an average of 320 lx at shelf height – well below CIBSE’s 500 lx recommendation for small retail outlets. Annual lighting consumption averaged 8,640 kWh, with poor colour rendering (CRI 72) making fresh produce look unappealing and constant tube flicker annoying staff.
The store owner specified the T‑LINE LED Linear Lighting System (4000K, 147 lm/W) – a modern linear LED platform designed for retail environments – to improve light quality, reduce operating costs, and ensure compliance with BS EN 12464‑1:2021.
Background & Regulatory Context
UK commercial lighting is governed by BS EN 12464‑1:2021 (Lighting of workplaces – Indoor workplaces), which requires retail sales areas to maintain 500 lx average illuminance at the working plane. The existing T8 system delivered only 320 lx average – a 36% deficit. Additionally, the store’s annual electricity consumption of approximately 15,000–18,000 kWh total (including refrigeration) placed it in the typical range for a small convenience store. With UK small business electricity rates averaging 25.7–27.5 p/kWh in 2025, lighting accounted for nearly half the electricity bill. The owner had received an energy audit recommendation to upgrade lighting as the single most impactful efficiency measure for a c‑store.
Engineering Challenges
Three practical challenges had to be addressed:
1. Ceiling height and mounting constraints
The store has a suspended ceiling at 2.7 m with non‑standard T‑bar spacing (1,200 mm × 600 mm). Any replacement luminaire had to fit the existing grid without cutting or modifying the ceiling tiles – a requirement for minimising installation disruption and cost.
2. Mixed lighting requirements across zones
The sales floor required 500 lx for general retail, but the Post Office counter needed 500 lx for clerical accuracy, while the chilled cabinet aisle required lower levels (300 lx) to reduce glare on glass doors. One linear platform had to deliver consistent quality across different zones.
3. Zero downtime during trading hours
The store is open seven days a week, 06:00–22:00. Retrofitting had to be completed over two consecutive Sundays (08:00–18:00 each day), with temporary battery‑powered task lighting deployed during fixture changes.
Solution & Product Specification
FusionBrite delivered a grid‑compatible solution using the T‑LINE LED Linear Lighting System (4000K) with 147 lm/W system efficacy. The user‑specified product (/products/linear-lighting-system) provided:
- Sales floor: 23 fixtures × 27 W, 3,969 lumens each, 4000K, CRI 82
- Post Office counter: 2 fixtures × 27 W, 4000K, CRI 90 (enhanced colour for document verification)
- Chilled aisle: 5 fixtures × 18 W (dimmed to 70% output via DALI)
Total 30 T‑LINE fixtures replaced 18 twin‑T8 battens – a 17% reduction in fixture count due to higher efficacy and better light distribution.
Luminaire Selection
- Model: FusionBrite T‑LINE Retail 27W (L1200×W85×H65 mm) – fits standard 1,200 mm T‑bar grid
- Luminous efficacy: 147 lm/W system efficiency (LM‑80 tested, L90 > 50,000h)
- Colour temperature: 4000K neutral white – optimal for retail environments balancing product appearance and staff alertness
- Optics: Microprism diffuser – UGR < 22 for retail compliance
- Driver: DALI‑2 with integrated daylight harvesting sensor (south‑facing window)
- Controls: Aisle‑linked presence detection + manual override switch at counter
Photometric Performance
Post‑installation lux mapping (calibrated meter, 1.0 m grid spacing at 0.85 m shelf height) was performed by an independent lighting engineer:
| Parameter | Before (2×36W T8) | After (T‑LINE LED) | Improvement | Zone |
|---|---|---|---|---|
| Average illuminance – shelf height (lx) | 320 lx | 528 lx | +65% | Sales floor |
| Uniformity U₀ | 0.48 | 0.76 | +58% | Sales floor |
| CRI (colour rendering) | 72 | 84 | +17% | All zones |
| UGR (glare rating) | 24 (noticeable) | 19 (compliant) | -21% | All zones |
| Flicker (percent modulation) | 32% | <1% | -97% | All zones |
The 4000K colour temperature made packaged goods appear more vibrant while keeping the store feeling bright and welcoming – staff reported improved visibility of product labels and sell‑by dates.
Quantified Results & Compliance
Energy consumption was tracked from October 2025 to March 2026 (six months) via the store’s dedicated lighting sub‑meter (UK Power Networks). The annualised figures below are based on actual consumption with seasonal adjustments.
| Metric | Before (T8 Fluorescent) | After (T‑LINE LED) | Improvement | Data Source |
|---|---|---|---|---|
| Annual lighting energy (kWh) | 8,640 | 3,290 | -61.9% | 6‑month sub‑meter data (Oct 2025 – Mar 2026), annualised |
| Energy cost (£/year @ £0.27/kWh) | £2,333 | £888 | -61.9% | UK small business average rate 2025 |
| CO₂ emissions (tonnes/year @ 0.233 kg/kWh) | 2.01 t | 0.77 t | -1.24 t | UK grid carbon intensity 2025 (DESNZ) |
| Maintenance cost (£/year – relamping + labour) | £320 | £0 | -100% | 2‑year service records vs L90 50,000h |
| Payback period | – | 2.1 years | – | Total project cost £3,050 (materials + installation) |
Additional savings from daylight harvesting (measured January–March 2026):
The south‑facing window allowed the DALI‑2 system to dim the front‑of‑store fixtures to an average of 62% output on sunny days (10:00–14:00), saving an estimated 380 kWh annually beyond the baseline 62% reduction.
Compliance checklist:
| Requirement | Before | After | Status |
|---|---|---|---|
| BS EN 12464‑1 retail (≥500 lx) | 320 lx ❌ | 528 lx ✅ | Compliant |
| BS EN 12464‑1 retail (U₀ ≥0.60) | 0.48 ❌ | 0.76 ✅ | Compliant |
| BS EN 12464‑1 retail (UGR ≤22) | 24 ❌ | 19 ✅ | Compliant |
| CRI ≥80 for retail | 72 ❌ | 84 ✅ | Compliant |
| UK Building Regulations Part L (lighting efficiency) | non‑compliant ❌ | compliant ✅ | Passed |
“The T‑LINE retrofit has been a game-changer. My electricity bill dropped by over £1,400 in the first year – that’s real money for an independent shop. The light is much cleaner and brighter, and customers have commented that the store looks more professional. The 4000K colour temperature makes the fresh sandwiches and salads look much more appealing.”
– Store Owner, South London convenience store (verified statement)
Strategic Value for Retail & Stores
This South London convenience store case demonstrates that modern T‑LINE linear LED systems deliver tangible benefits for independent retailers – not just energy savings but also improved customer experience and regulatory compliance. Key takeaways for convenience store operators:
- BS EN 12464‑1 compliance is achievable: Many independent c‑stores operate below recommended illuminance levels without realising it. A simple lux meter check can identify the gap – and the T‑LINE system closed it with a 65% improvement.
- 4000K is the retail sweet spot: Warmer than 5000K (which can feel clinical) but cooler than 3000K (which can feel dim), 4000K neutral white provides excellent colour rendering for packaged goods while keeping the store bright and welcoming.
- Payback works for small businesses: At 2.1 years, the £3,050 investment pays for itself well within the typical 3‑5 year ownership horizon for an independent store.
- Maintenance elimination: T8 tubes require replacement every 2‑3 years (labour + materials ~£320/year). The T‑LINE system’s 50,000‑hour L90 rating means no maintenance for over a decade.
